The Faccin BF series of flanging machines have been completely developed by the Faccin Group Technical Division. This range guarantees high productivity and maximum quality, offering a cost-effective solution. The frame’s compact design suits its installation in workshops of all dimensions.
Additionally, the newest Total Gap Control serves as the Starship software, supporting the flanging machine operators. This tool significantly enhances the spinning process for operators of all skill levels, from beginners to experts.
The Faccin BF series can produce heads with or without center hole and manages thicknesses ranging from 2 mm (14 ga) to 50 mm (20 in.) in cold forming. The entire engineering and manufacturing process is managed internally and subjected to strict controls.
Proportional hydraulic system with compensated manifolds
Simple, one-person operation

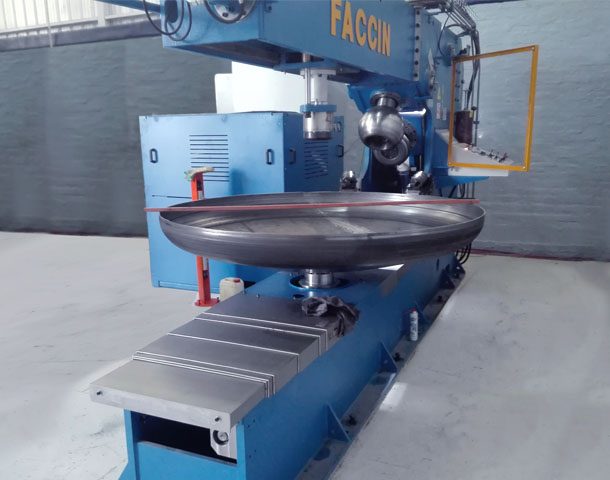

Proportional pressure control system for minimal thinning
Advanced Siemens CNC Total Gap Control
Automatic flanging cycle with pressure and position control (Total Gap Control) operated by proportional controls
Electric drive with AC inverter for knuckle roll
Rolls rotation torque monitoring to prevent overloads
Knuckle roll shaft tilting for material spring back compensation
Linear guides for carriages to eliminate mechanical wear and maintain the axis tolerance constant, even after several years of operating
Leadscrew for the carriages to reduce the drive power and to eliminate the costly bronze bushing wear
Total Gap control
Hot flanging package

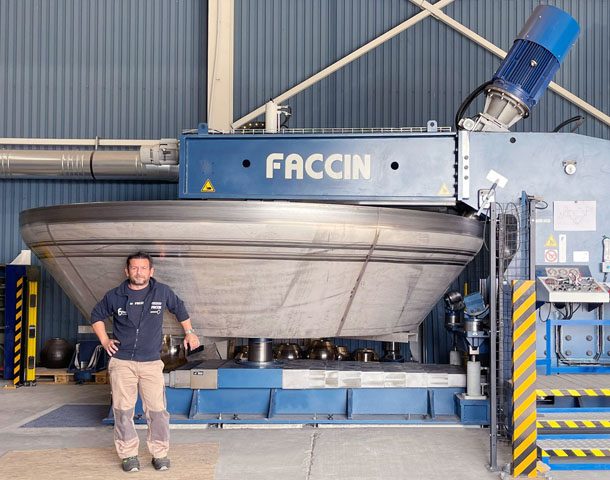

Special device for cone production, for both vertical and tilted axis conical components

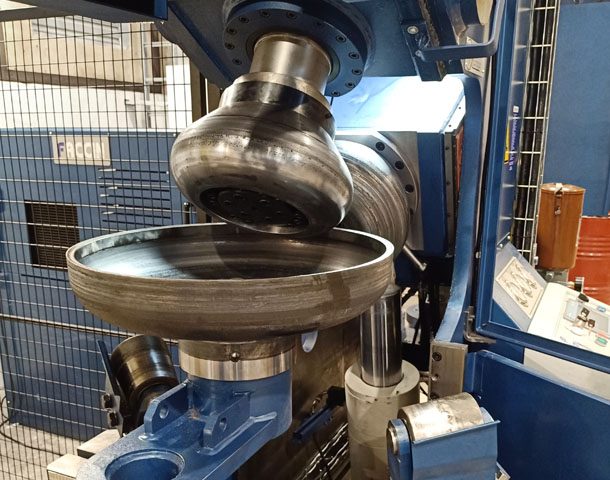

Device for small head flange

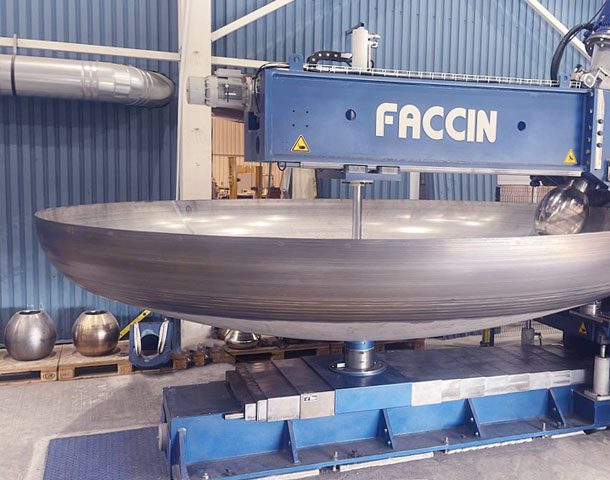

Configuration for heads with/out central hole
Configuration with tilting upper beam to flange tilted wide conical components
Loading and unloading systems
Device to mount/dismount knuckle rolls
Special knuckle rolls for stainless steel and exotic high alloyed materials
Machine arm for heads bevelling
Additional knuckle rolls
RSM – cloud-based Remote Service Management
